"沙巴体育投注" The 5 insulation system solutions for exterior walls of buildings are respectively:
A、Exterior Wall Insulation System Solution
B、Interior Wall Insulation System Solution
C、Roof Insulation System Solution
D、Curtain Wall System Solution
E、Metal Sandwich Panel Insulation System
Among them, exterior wall insulation and energy-saving technology is most used 沙巴体育投注官网. It has high performance requirements for the insulation system and therefore needs scientific and rational design. 3TREES provides one-stop services for integrated insulation systems throughout the country. 3TREES provides supply safeguards and whole-process services for auxiliary materials, insulation materials, finishes (or waterproof materials), and construction, thus maximally ensuring the quality of integrated insulation systems.
Exterior Wall InsulationInterior Wall InsulationRoof InsulationCurtain Wall InsulationMetal Sandwich Panel Insulation

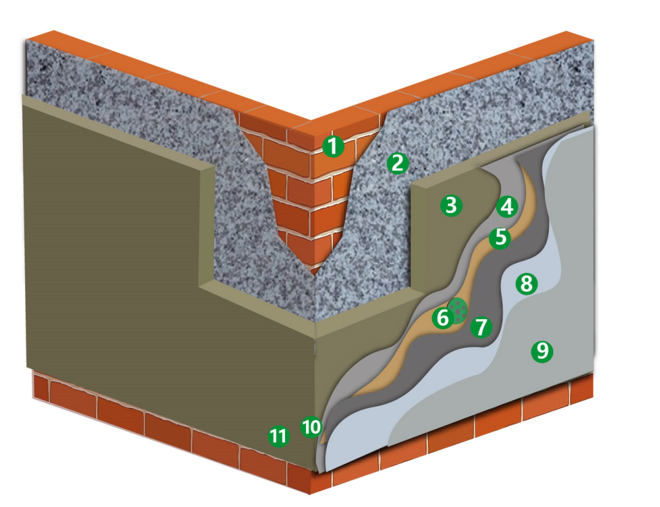

Exterior Wall Insulation System Solution (沙巴官网)
1
Substrate wall (沙巴体育足球投注网站官方网站)
"沙巴体育官网" 2
Bonding mortar
3
3TREES insulation board (沙巴体育投注)
沙巴体育投注官网 - 4
Plastering mortar
5
Single- or double-layer mesh cloth
6
Anchor
沙巴官网 - 7
Plastering mortar
8
Putty layer
9
Coating or decorative mortar
10
Angle guard net
11
Base bracket
Application Drawing of Passive Insulation
The exterior wall external insulation system is one of the most mature energy-saving technologies with the longest application history in foreign countries 沙巴体育投注. It is also the most popular way of insulation for buildings in China. Compared with internal insulation and fabricated insulation for exterior walls, the exterior wall external insulation system can eliminate thermal bridges. Therefore, the exterior wall external insulation system has become the main application mode in passive ultra-low energy-consuming buildings. 3TREES’s exterior wall external insulation system is composed of special bonding mortar, high-quality insulation board, high-strength alkali-resistant glass fiber mesh cloth, flexible plastering mortar, supporting flexible water-resistant putty, and finishes (coating and decorative mortar), which possesses excellent anti-crack, impact resistance and weather-shield performances.

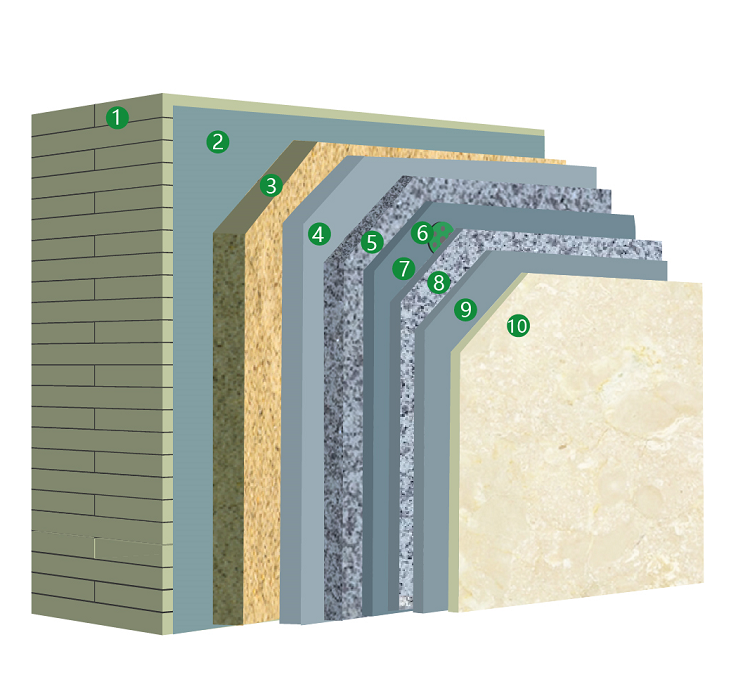

Rock Wool Board (Serial) Exterior Wall External Insulation Integrated System
Benzene Board (Serial) Exterior Wall Insulation Integrated System
1
Substrate wall -- concrete and various masonry base surfaces
2
Bonding layer -- bonding mortar
沙巴体育投注 - 3
Insulation layer -- rock wool board (double-side coated with interface agent)
4
Base layer -- plastering mortar
5
Reinforcing material -- alkali-resistant glass fiber mesh cloth
6
Coupling -- anchor bolt
7
Intermediate layer -- plastering mortar
8
Reinforcing material -- alkali-resistant glass fiber mesh cloth
"沙巴体育投注" 9
Surface layer -- plastering mortar
10
Finish layer -- coating, decorative mortar, etc.
① ⑩ Basic structure ④ ⑨ Plastering layers
| No. | 3TREES Rock Wool Board System (Paint Finish) | |
|---|---|---|
| Name | Description | |
| 1 | Substrate wall | Including reinforced concrete base, hollow block base, sintered brick base, aerated block base, etc. |
| 2 | Special bonding mortar for rock wool board | High bond strength and good workability |
| 3 | Rock wool board / strip | Rock wool board: tensile strength ≥ 15kPa, Rock wool strip (vertical): tensile strength ≥ 150kPa, Acidity coefficient ≥ 1. 8, produced through the pendulum process 沙巴体育投注官网. |
| 4 | Special plastering mortar for rock wool board | High bond strength, and good crack resistance |
| 5 | Alkali-resistant glass fiber mesh cloth | Surface polymer material sheet treatment, and excellent alkali resistance |
| 6 | Anchors | High strength, and good toughness |
| 7 | Special plastering mortar for rock wool board | High bond strength, and good crack resistance |
| 8 | Alkali-resistant glass fiber mesh cloth | Surface polymer material sheet treatment, and excellent alkali resistance |
| 9 | Special plastering mortar for rock wool board | High bond strength, and good crack resistance |
| 10 | Paint finish | Including granite paint, natural stone paint, texture paint, emulsion paint and so on |

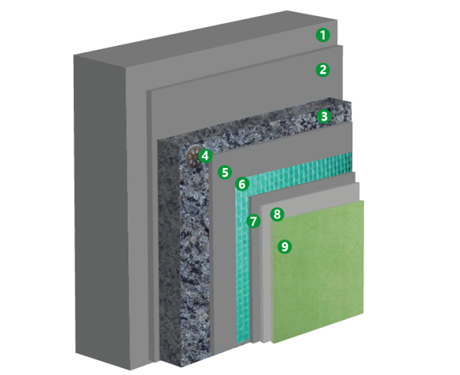

1
Substrate wall
2
Polymer bonding mortar
3
Graphite polystyrene board
4
Mechanical anchor
沙巴体育投注官网 - 5
Polymer plastering mortar
6
Alkali-resistant glass fiber mesh cloth
7
Polymer plastering mortar
8
Flexible waterproof putty (沙巴体育投注官网)
"沙巴体育足球投注网站官方网站" 9
3TREES serial weather-shield decorative coating

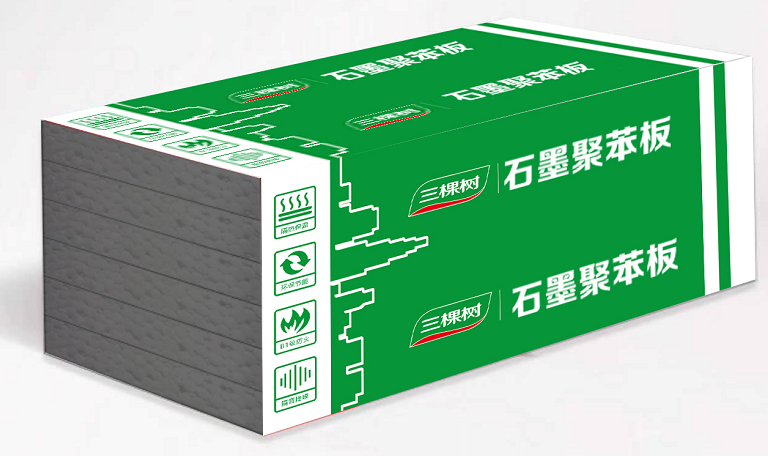

3TREES’s graphite polystyrene board insulation system is used in masonry engineering structures composed of reinforced concrete, concrete hollow blocks, sintered common bricks, sintered porous bricks, aerated lime sand bricks or slag bricks with heat preservation and energy-saving requirements in different climatic regions of China 沙巴体育投注. It is suitable for exterior wall insulation of passive and near zero energy consumption buildings; as well as of newly built, expanded, rebuilt or existing industrial and civil buildings.

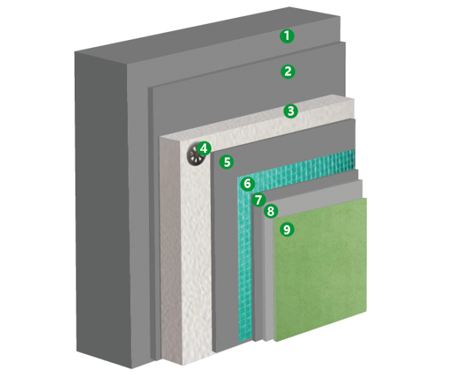

1
Substrate wall
2
Polymer bonding mortar
3
Plastic polystyrene board
4
Mechanical anchor
"沙巴体育足球投注网站官方网站" 5
Polymer plastering mortar
"沙巴体育足球投注网站官方网站" 6
Alkali-resistant glass fiber mesh cloth
7
Polymer plastering mortar
8
Flexible waterproof putty (沙巴体育官网)
9
3TREES serial weather-shield decorative coating
3TREES’s extruded polystyrene board system is used in masonry engineering structures composed of reinforced concrete, concrete hollow blocks, sintered common bricks, sintered porous bricks, aerated lime sand bricks or slag bricks with heat preservation and energy saving requirements in different climatic regions of China. It is suitable for exterior wall external insulation of passive and near zero energy consumption building; exterior wall external insulation of newly built, expanded, rebuilt or existing industrial and civil buildings; and exterior wall energy-saving reconstruction projects of old buildings with old ceramic tiles, mosaics, water-based coatings, oil-based coatings and other finishes 沙巴官网.
| No. | 3TREES Polystyrene Board Series System | |
|---|---|---|
| Name | Description | |
| 1 | Substrate wall | Including reinforced concrete base, hollow block base, sintered brick base, aerated block base, etc. |
| 2 | Special bonding mortar for rock wool board | High bond strength and good workability |
| 3 | Polystyrene board | Molded polystyrene board, and graphite polystyrene board |
| 4 | Anchor | Used according to needs |
| 5 | Special plastering mortar for polystyrene board | High bond strength, and good crack resistance |
| 6 | Alkali-resistant glass fiber mesh cloth | High strength, and good toughness |
| 7 | Special plastering mortar for polystyrene board | High bond strength, and good crack resistance |
| 8 | Flexible water-resistant putty | Good flexibility and good waterproof performance |
| 9 | Coating finish | Including granite paint, natural stone paint, texture paint, emulsion paint and so on. |
Note: If decorative mortar is used for the finish layer, the putty layer is not needed, so as to reduce the construction process and save cost.

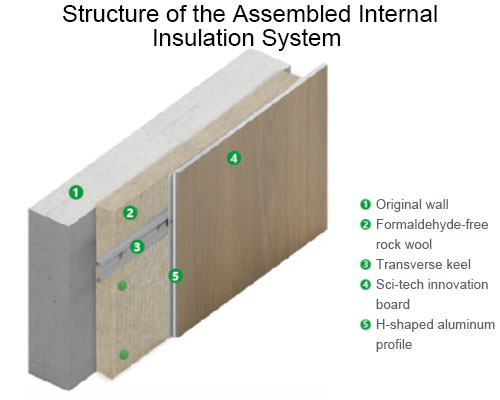

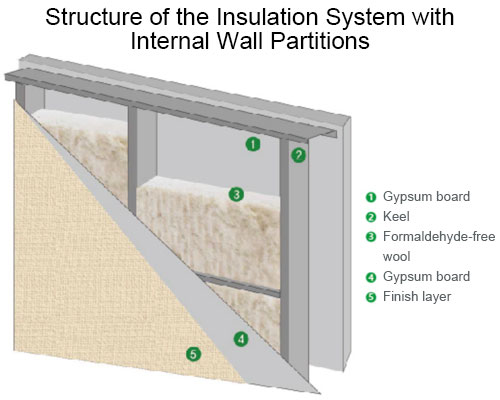

"沙巴体育投注" Interior Wall Insulation System Solution
The core material of 3TREES’s interior wall insulation integrated system is the formaldehyde-free, safe and environmental-friendly insulation rock wool with low thermal conductivity independently developed by 3TREES.
The product is made with a proprietary formula and special production processes, so it does not contain formaldehyde or other toxic and harmful substances 沙巴体育投注. It leads the industry in multiple indicators and outperforms similar foreign products.
It not only achieves fire prevention, heat preservation and sound insulation, but also solves the problem of indoor and outdoor air pollution, thus thoroughly satisfying the high requirements of modern indoor decoration.

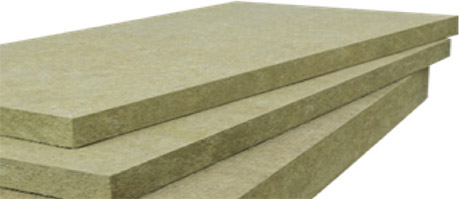

沙巴体育投注官网 - Roof Insulation System Solution
3TREES’s roof insulation and waterproof integrated system consisting of high-strength rock wool boards and graphite polystyrene boards is specially designed and developed for all kinds of flexible waterproof roof systems. It is an integrated system comprising heat insulation, waterproofness, sound insulation and noise reduction 沙巴体育官网.
The system has good compression resistance and point load resistance characteristics 沙巴体育足球投注网站官方网站. It can not only meet the needs of bearing the weight of personnel and related equipment during roof system construction and maintenance, but also maintain stable effects of thermal insulation, waterproofness, sound insulation, noise reduction and fire prevention.
Used along with holed metal sheets, it is mainly applied in the planting roofs and flexible waterproof roofs of new, expanded or existing buildings.

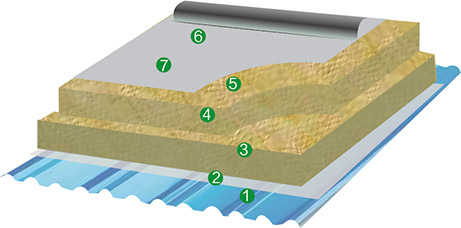

Profiled Steel Sheet Roof
1
Profiled steel sheet
"沙巴体育投注" 2
Vapor barrier
"沙巴体育投注官网" 3
3TREES rock wool
4
3TREES rock wool
"沙巴体育足球投注网站官方网站" 5
Rock wool board fastener
6
Flexible waterproof membrane
7
Membrane fastener

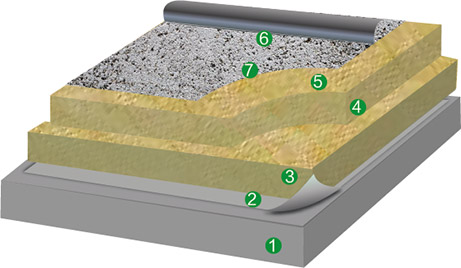

Concrete Floor Roof
"沙巴官网" 1
Concrete floor
"沙巴体育投注官网" 2
Vapor barrier
3
3TREES rock wool
"沙巴体育投注官网" 4
3TREES rock wool
"沙巴官网" 5
Rock wool board fastener
沙巴体育官网 - 6
Membrane fastener
7
SBS or APP modified asphalt
Curtain Wall Insulation System Solution
3TREES’s fireproof and insulation rock wool board integrated system for curtain walls is specially designed for all kinds of curtain wall systems, with higher fire-resistant temperature, higher melting point, longer fire resistance time and so on.
3TREES’s special rock wool boards for curtain walls are used not only for fire prevention, smoke and gas separation between curtain walls and floorslabs, and between curtain walls and partition walls, but also for fire prevention and sealing of other building gaps, including gaps around pipes passing through walls or floors.
The composite rock wool boards with composite fireproof aluminum foils on the upper and lower surfaces of the boards can enhance the ability to block smoke and thus have better fire prevention effect.

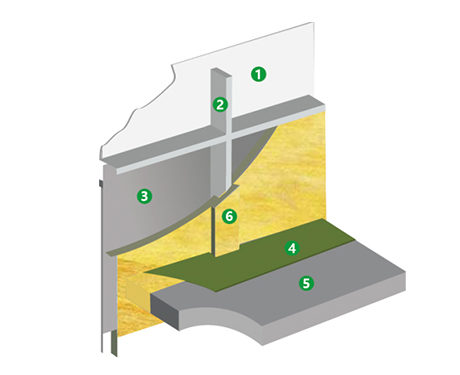

Non-transparent Curtain Wall
1
Curtain wall of the non-transparent part
2
Keel
3
Interior wall of the nontransparent part (沙巴体育投注官网)
4
Fire-resistant coating
沙巴体育官网 - 5
Floorslab
6
3TREES fireproof rock wool for curtain wall

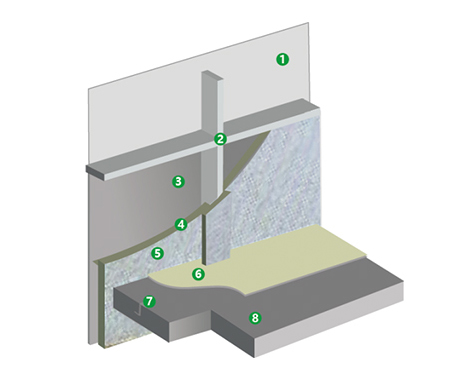

Transparent Curtain Wall
1
Curtain wall of the transparent part
2
Keel
3
Interior wall of the non-transparent part
"沙巴体育官网" 4
3TREES fireproof rock wool for curtain wall
"沙巴官网" 5
Veneer protective layer
6
Fire-resistant coating (沙巴体育官网)
7
Z-shaped bracket
8
Floorslab

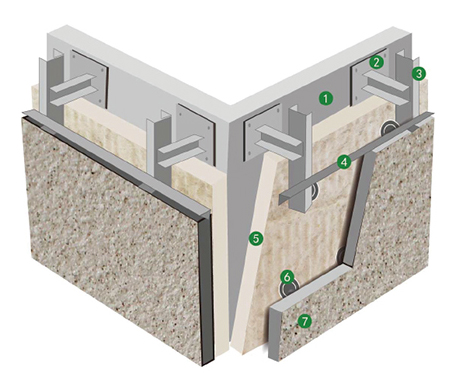

"沙巴体育投注" Structure of the Curtain Wall Insulation Application System
沙巴官网 - 1
Substrate wall
2
Embedded part
3
Vertical keel
"沙巴体育投注" 4
Transverse keel
5
Formaldehyde-free rock wool
"沙巴体育足球投注网站官方网站" 6
Anchor
7
Dry-hanging stone

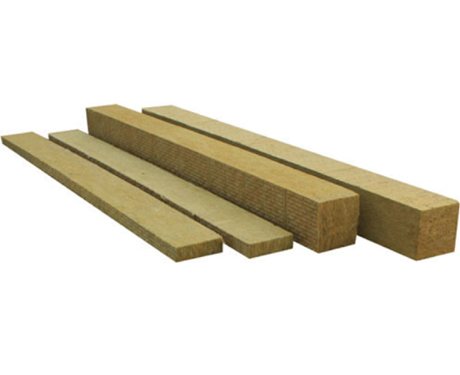

Metal Sandwich Panel Insulation System Solution
The core material of 3TREES’s metal sandwich panel insulation system is the special rock wool strips for sandwich boards developed by 3TREES. When used on the metal panels, they can achieve natural deposition without crimped wool 沙巴体育足球投注网站官方网站. The strip structure can improve the tensile strength of the whole system and acquire excellent structural characteristics.
At the same time, the light weight can reduce the cost of the structure. Besides, its free cutting feature ensures easy installing, while improving efficiency and saving construction time.
The superior rock wool materials can also achieve fire prevention, thermal insulation and sound insulation, thus meeting the insulation requirements of various metal sandwich panel scenes.

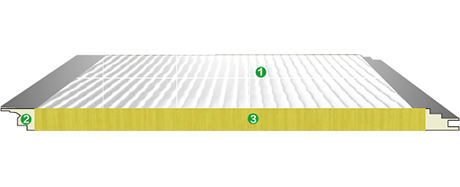

"沙巴体育投注官网" Structure of the Metal Rock Wool Sandwich Roof Panel System
1
Metal wall panel
2
Polyurethane edge sealing
3
Superior rock wool
1
Metal wall panel
2
Polyurethane edge sealing
3
Superior rock wool
